P/N
PS-TPD-1200FNFAGE-4
WATTS
1200W
MODEL
TPD-1200AH3FCG
MAX. OUTPUT CAPACITY
1200W
COLORE
Black
DIMENSION ( W / H / D )
150mm(W) x 86mm(H) x 160mm(D)
WEIGHT
1.88 KG
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
> 17msec at 100% of full load
INPUT CURRENT
15.0A / 7.0A
INPUT FREQUENCY RANGE
50/60Hz
INPUT VOLTAGE
100V – 240V~
OPERATING TEMPERATURE
0°C to + 40°C
OPERATING HUMIDITY
20% to 90%,non-condensing
STORAGE TEMPERATURE
-20°C to + 70°C
STORAGE HUMIDITY
5% to 95%, non-condensing

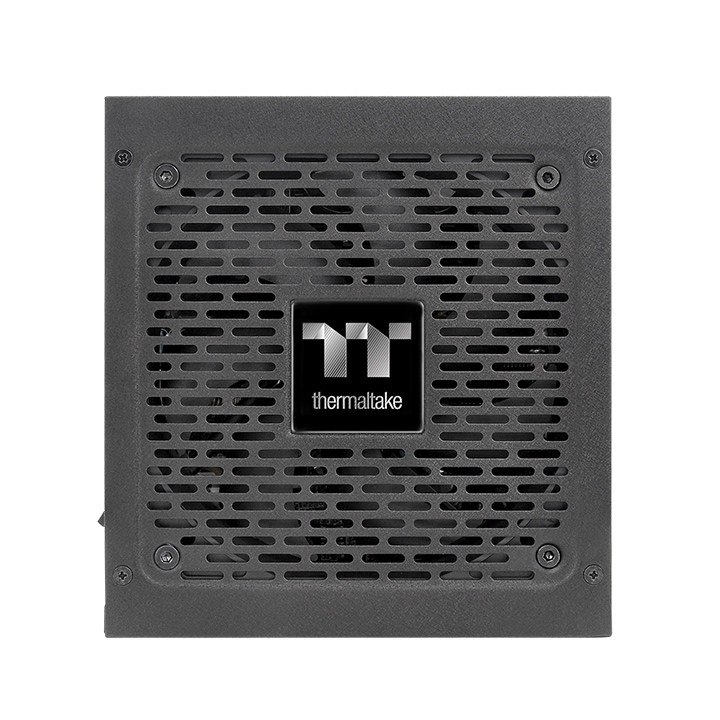

SISTEMA DI RAFFREDDAMENTO
13.5cm fluid bearing fan
EFFICIENCY
Meet 80 PLUS®Gold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC

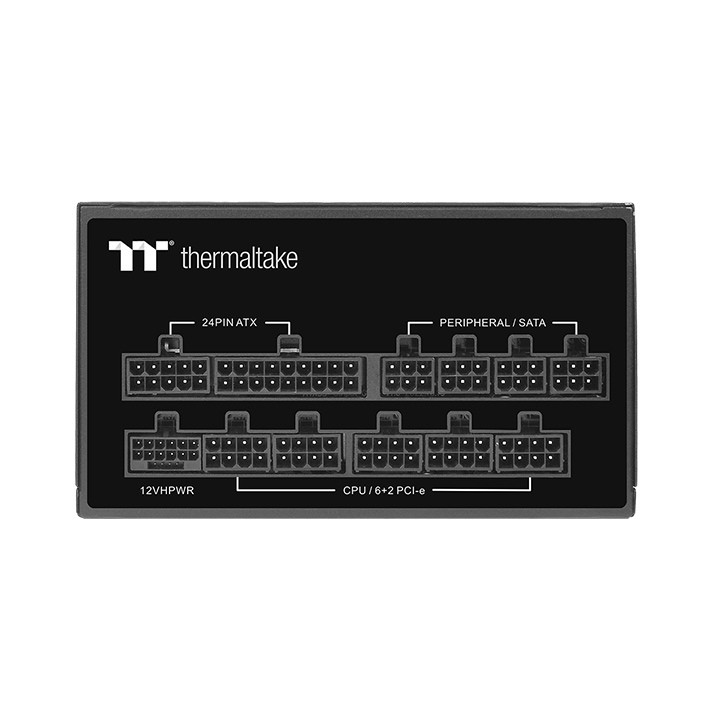

PCI-E 6+2PIN
PCIe 6+2pin X 4
PCIe 12+4pin X 1
PROTECTION
OCP, OVP, UVP, OPP, SCP, OTP
