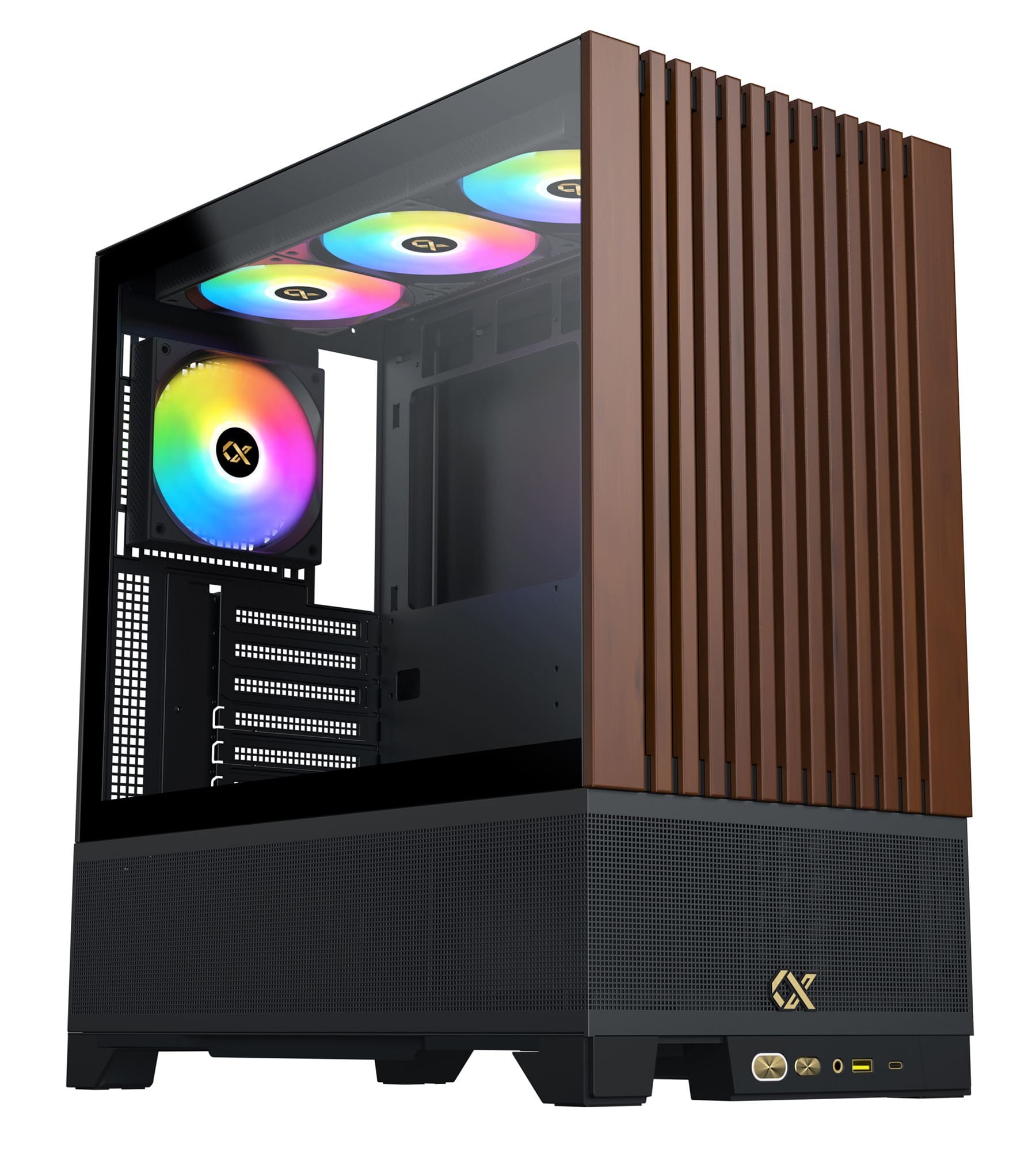

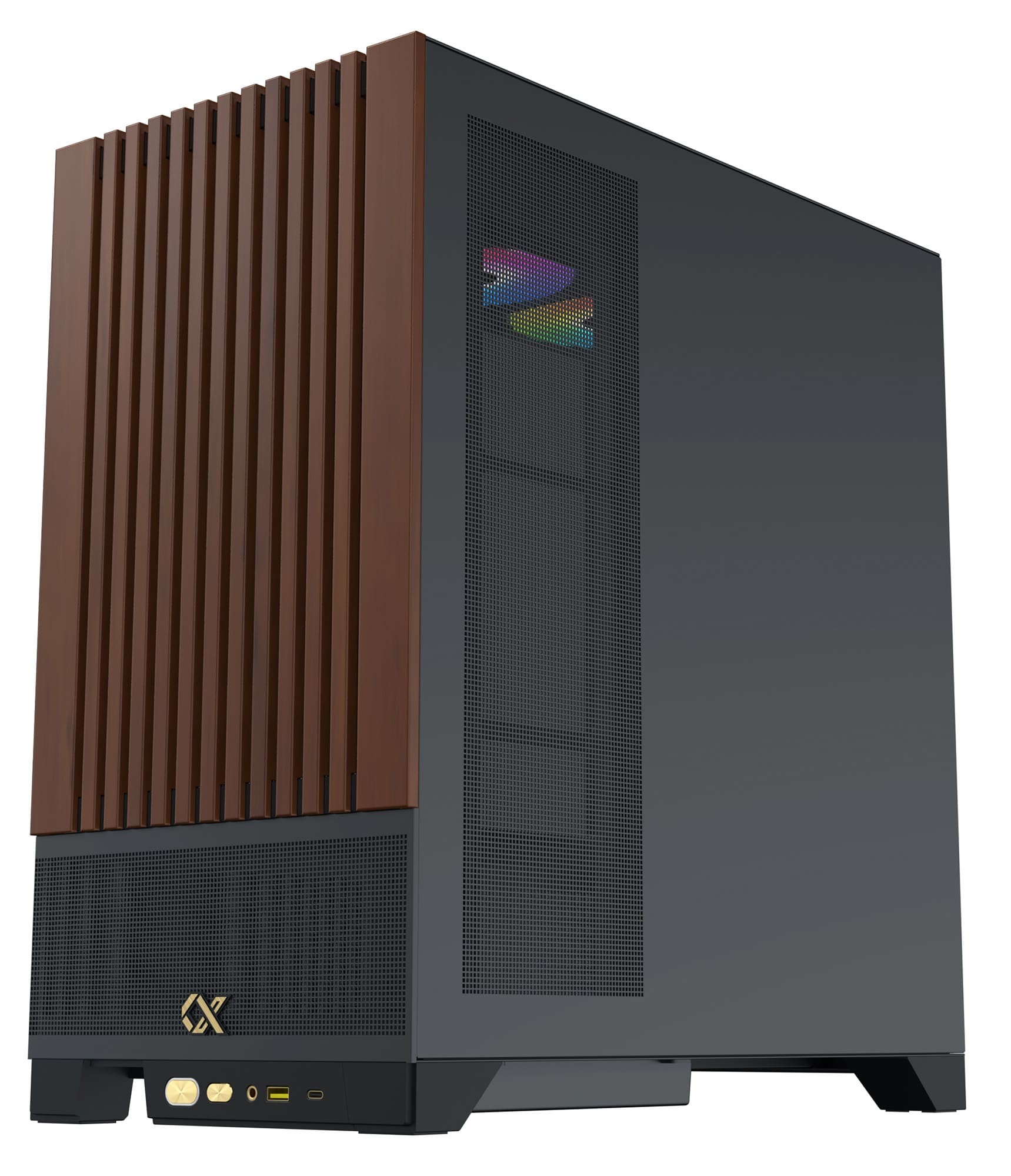

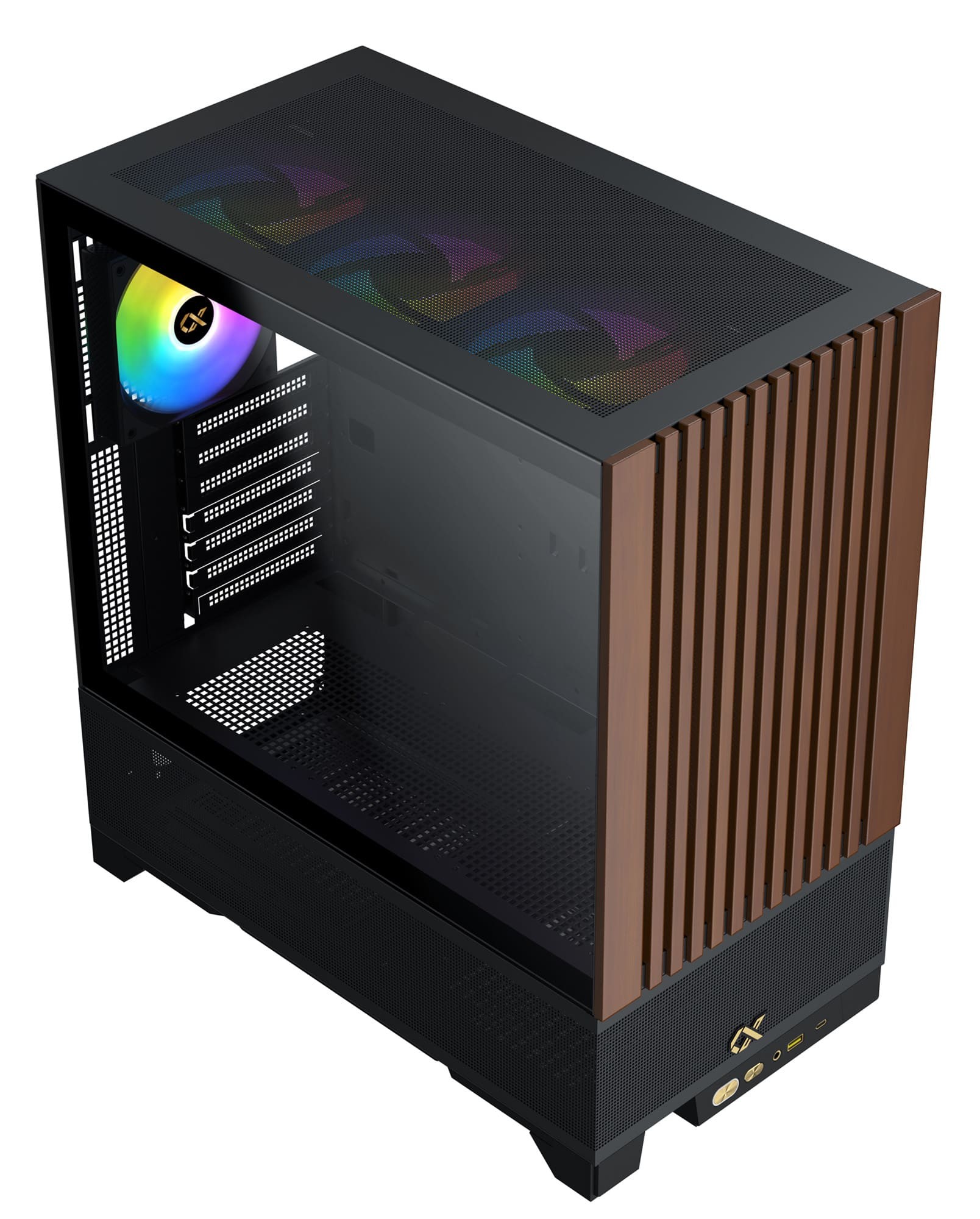

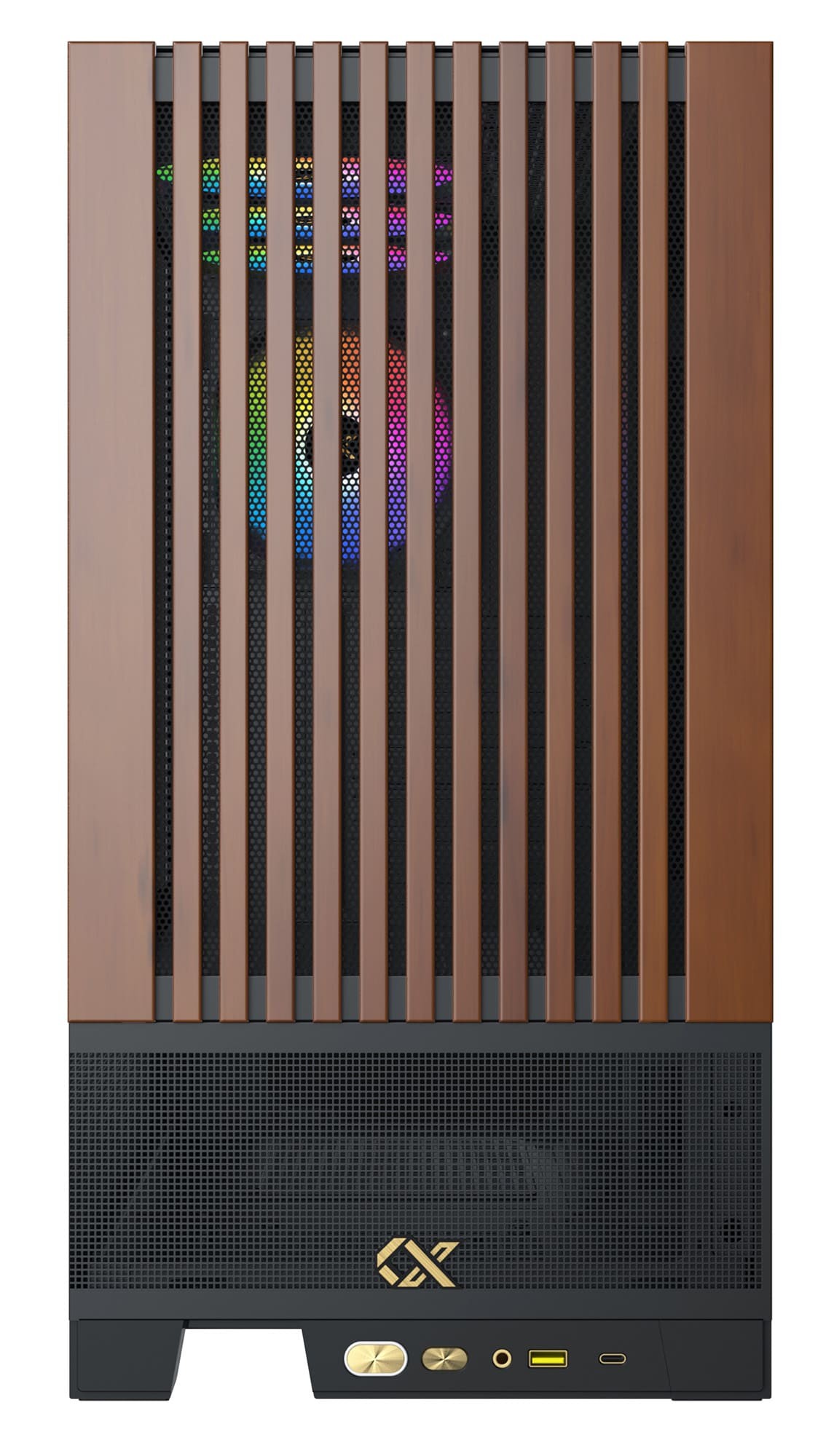

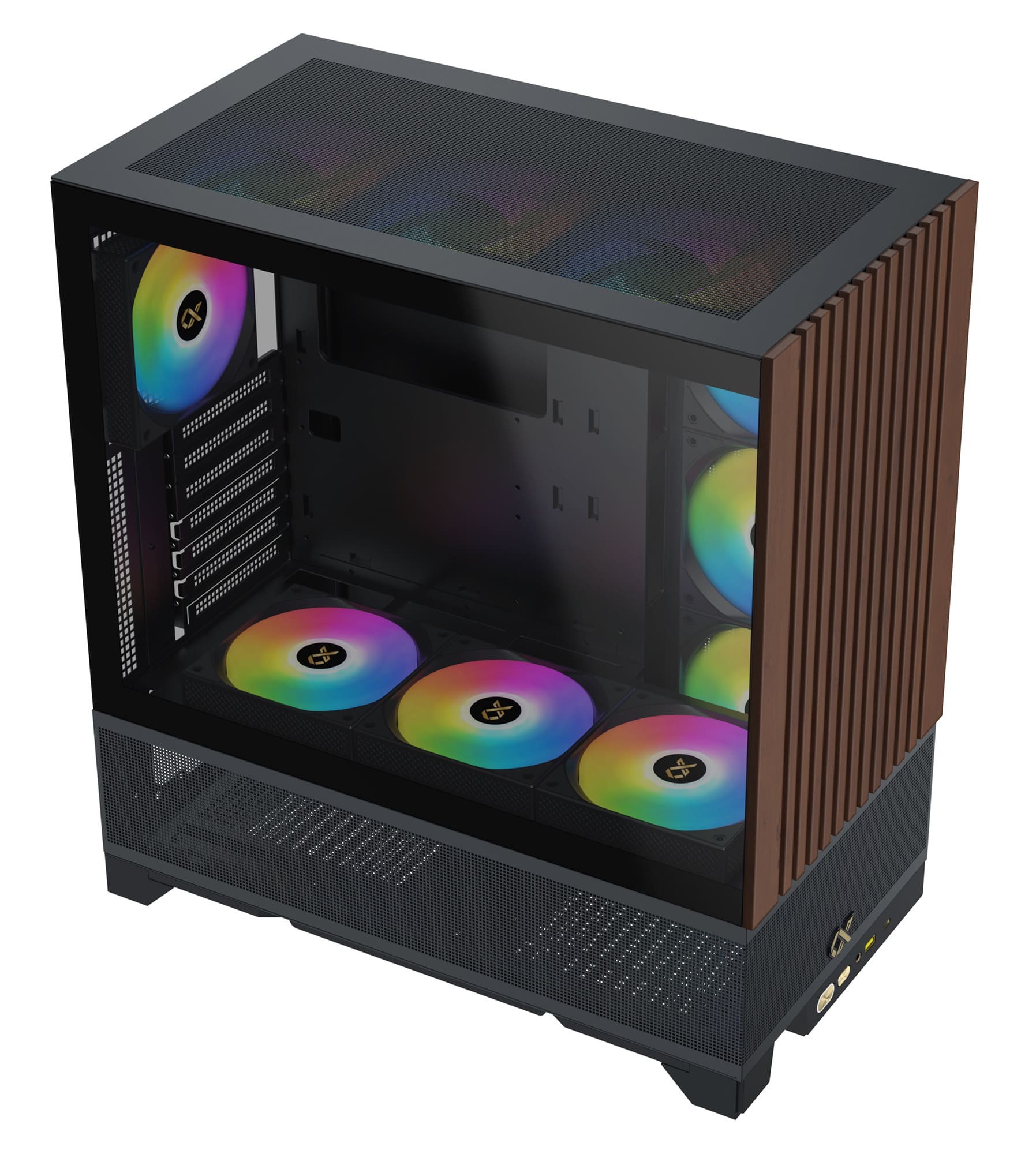

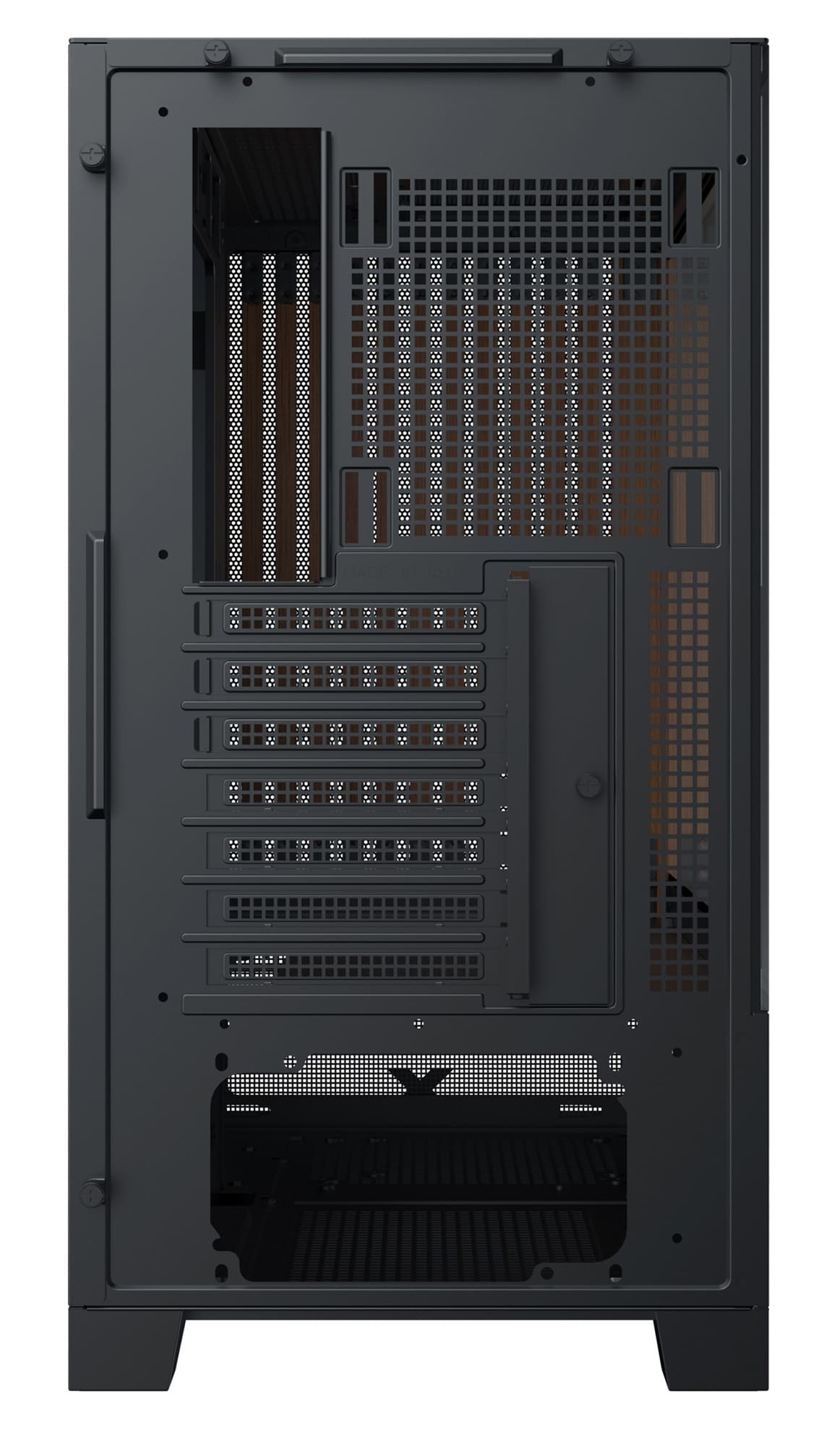

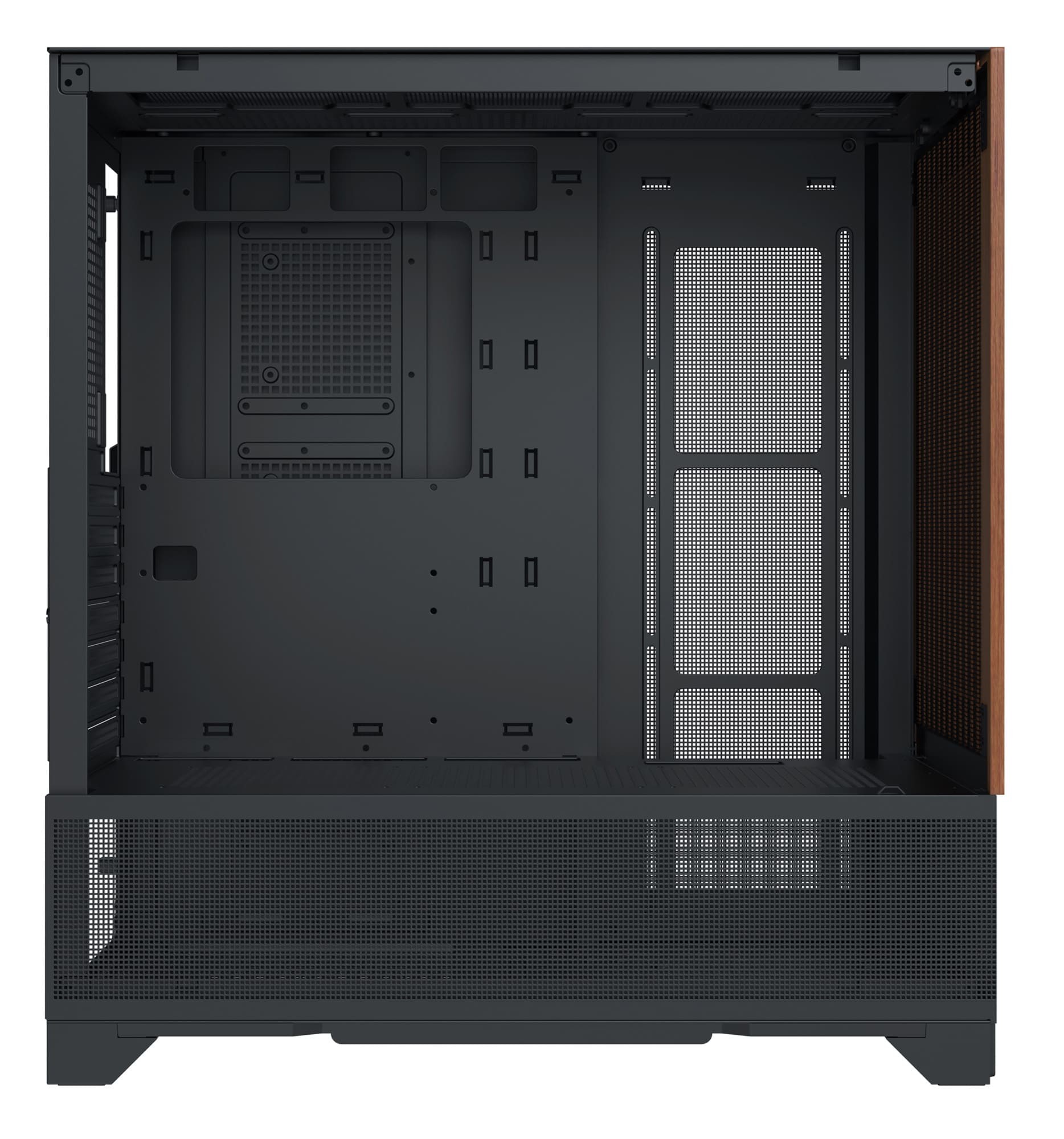

PC- Case Xigmatek Endorphin WD

PRODUCT NAME

ENDORPHIN WD

MATERIAL

0.8MM SPCC THICKNESS

DIMENSIONS

438X245X473MM (LXWXH)

DRIVE BAYS

HDD & SSD BRACKET:
3.5″ & 2.5″ COMBO X3

EXPANSION SLOTS

7 STANDARD SLOTS

MOTHERBOARD SUPPORT

E-ATX, ATX, M-ATX, MINI-ITX

POWER SUPPLY

STANDARD PS2 ATX PSU

FAN SUPPORT

TOP: 120MM OR 140MM X3
MB PANEL: 120MM X3(ATX MB ONLY)
PSU SHROUD: 120MM X3
REAR: 120MM

RADIATOR SUPPORT

MB PANEL: 240MM(ATX MB ONLY)
TOP: 360MM
REAR: 120MM

I/O PANEL

USB 3.0 X 1
USB-C X 1
HD AUDIO

CPU COOLER CLEARANCE

190MM

VGA LENGTH LIMITATION

270MM
(LIQUID COOLER ON MB PANEL)
420MM
(NO LIQUID COOLER ON MB PANEL)

PSU LENGTH LIMITATION

200MM
