Model Light Base 900 FX Black
Color option Black
Motherboard compatibility E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX

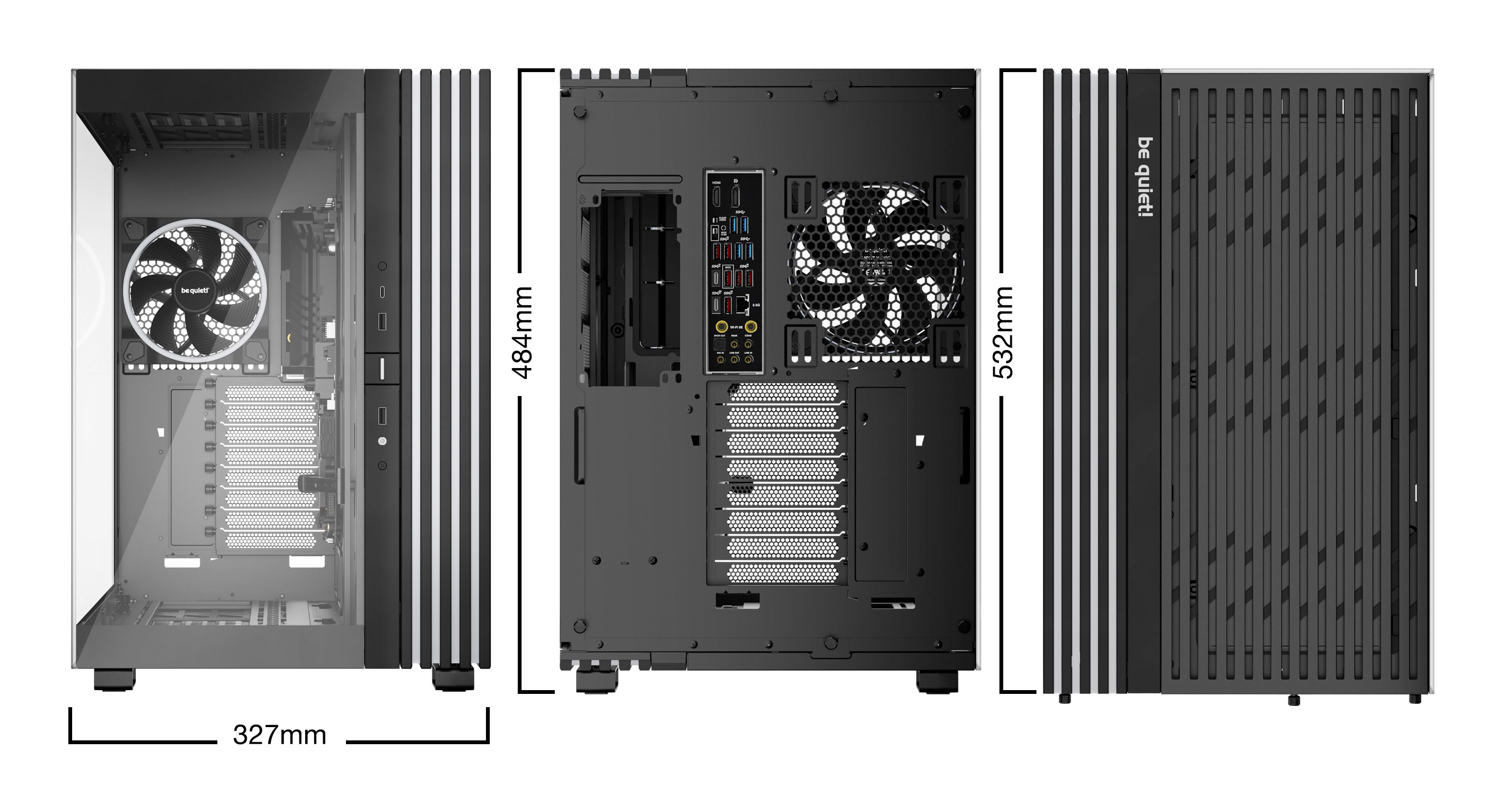

Case size excl. stands (L x W x H), (mm) 532 x 327 x 465
Case size incl. stands (L x W x H), (mm) 532 x 327 x 484
Volume (l) 68
PSU form factor ATX PS/2
Net weight (kg) 16.8
Expansion slots 8
Pre-installed fans
Fan at top -
Fan at front -
Fan at side 3x Light Wings Reversed 140mm PWM
Fan at rear 1x Light Wings 140mm PWM
Fan at bottom -
Dimensions (L x W x H), (mm) 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm) 1500 / 1300
Airflow at 100% PWM / 12V (CFM / m3/h) 56.0 / 95.1 | 51.37 / 87.28
Air Pressure at 100% PWM / 12V (mm H2O) 1.49 / 1.1
Noise level at 100% PWM / 12V (dB(A)) 23.3 / 25.5
Voltage range (V DC) 5-13.2 / 5-12
Input power (W) 3.8 / 0.72
Input current (A) 0.32 / 0.06
Connector 4-pin PWM
Lifespan (h / 25°C) 60,000
Fan controller 2x 12 ports
Maximum fan installation
Maximum fans 10
Top (mm) 3x 140 / 3x 120
Front (mm) -
Side (mm) 3x 140 / 3x 120
Rear (mm) 1x 140 / 1x 120
Bottom (mm) 3x 140 / 3x 120
PSU shroud -
Optional radiator installation
Top (mm) 120 / 140 / 240 / 280 / 360 / 420
Front (mm) -
Side (mm) 120 / 140 / 240 / 280 / 360
Rear (mm) 120 / 140
Bottom (mm) 120 / 140 / 240 / 280 / 360 / 420
PSU compatibility
Maximum dimensions excl. bottom fan (mm) 225
Maximum dimensions incl. bottom fan (mm) 225
Graphics card
HDD cage (in height of graphics card) installed (mm) 495
HDD cage (in height of graphics card) removed (mm) 495
Maximum PCIe slots with vertical graphics card (pcs.) 4
Drive bay capacity
5.25 bays (pcs.) -
3.5 slots (scope of delivery) 1
3.5 slots (max.) 2
2.5 slots (scope of delivery) 4
2.5 slots (max.) 6
Cooling
Max.construction height of CPU cooler unit (mm) 190
Airflow channel -
Lighting
LED illumination ✓
LEDs (pcs.) 172
LED type ARGB - 5V
LEDs synchronizable with controller/motherboard ✓

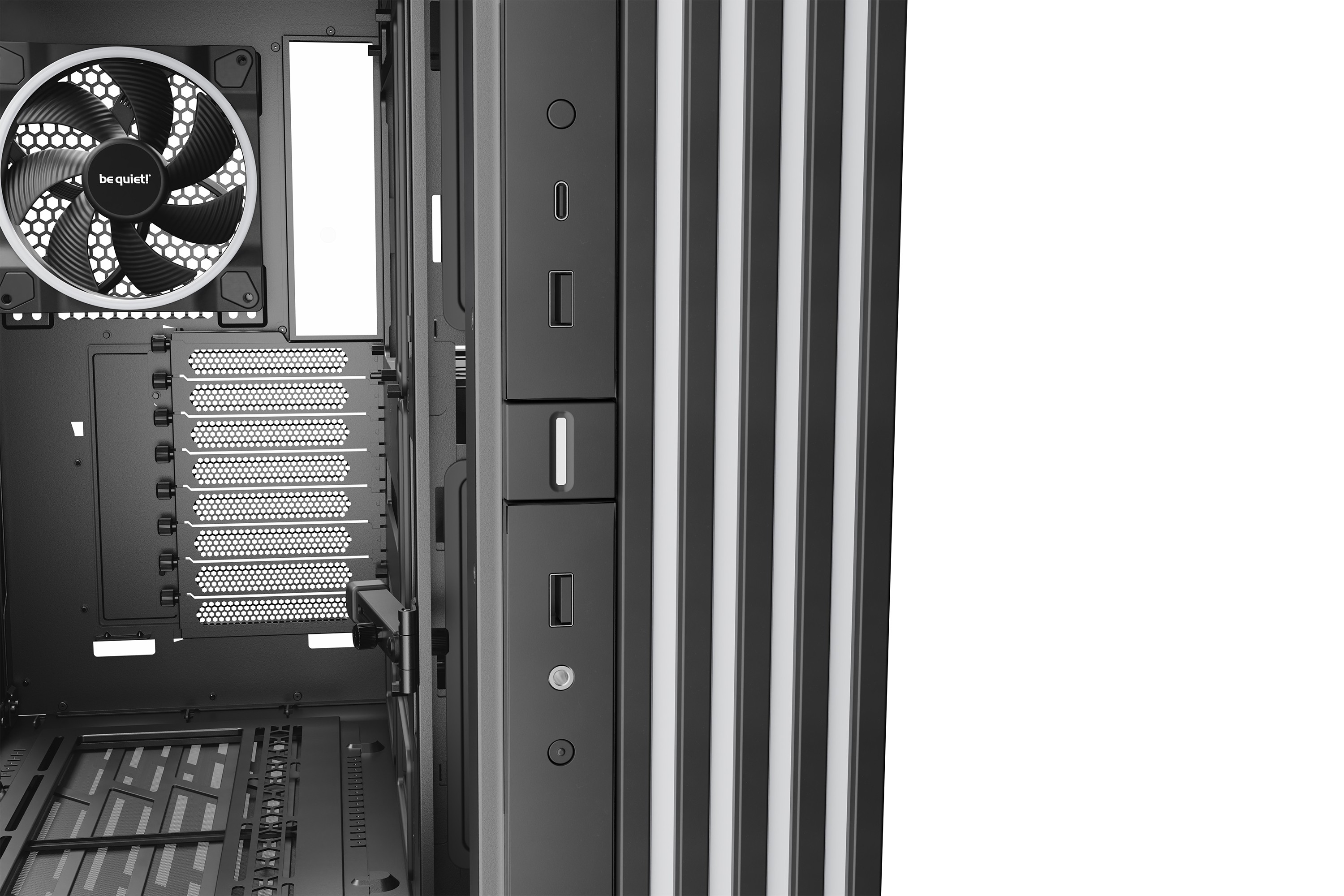

I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option (W) -
Insulation and damping
Top panel insulation mats -
Front panel insulation mats -
Side panel insulation mats -
Anti-vibration decoupled HDD ✓
Anti-vibration decoupled fan ✓
Anti-vibration decoupled PSU ✓
Anti-vibration decoupled motherboard-tray -
