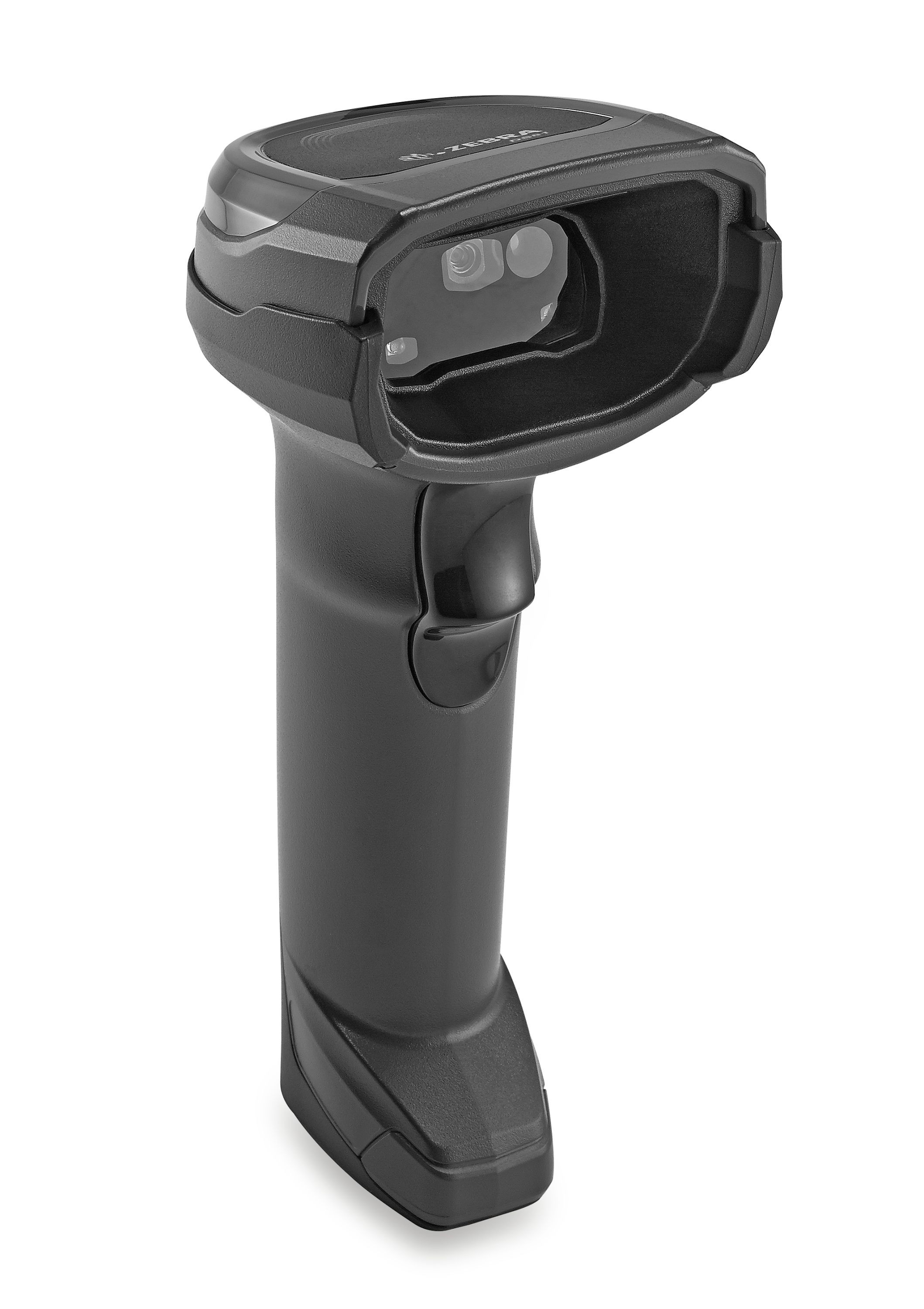

Lettore Barcode Zebra Ds8108 2D No Cavo

Scanning

Type

Characteristics of the device.

Handheld bar code reader

Scanner type

Indicates the type of scanner this product is.

1D/2D

Sensor type

LED

Linear (1D) barcodes supported

The product can read linear (1D) barcordes.

Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.

2D (matrix & stacked) barcodes supported

The product can read matrix (2D) barcordes.

Aztec Code, Composite Codes, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39

Wavelength

617 nm

Tilt reading angle

0 - 360°

Pitch reading angle

0 - 60°

Yaw reading angle

0 - 60°

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.

RS-232, USB, Keyboard wedge

PC connection

RS-232/USB

Performance

International Protection (IP) code

IP42

Product colour

Black

Power

Input voltage

The voltage (V) which is required to power the product.

5 V

Power consumption

450 mA

Weight & dimensions

Width

66 mm

Depth

107 mm

Height

The measurement of the product from head to foot or from base to top.

168 mm

Weight

154 g

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

5 - 95%

Logistics data

84716070
