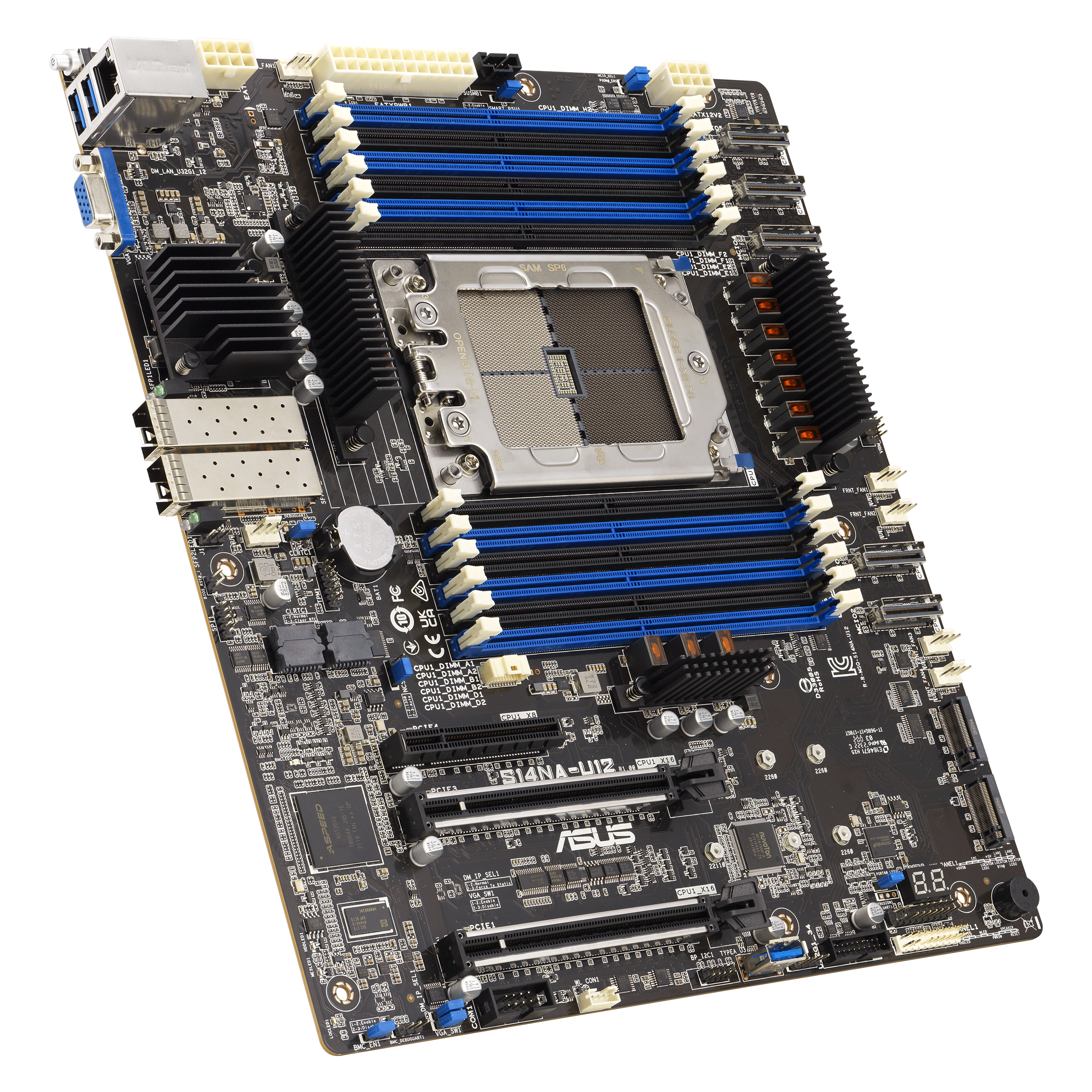

ASUS S14NA-U12/ASMB11 (4844) (D)

Processor / System Bus

1 x Socket SP6 (LGA 4844)
AMD EPYC™ 8004 Series (up to 225W)

Memory

Total Slots:
12 (6-channel, 2-DIMM per Channel)
Capacity:
Maximum up to 1152GB per CPU socket
Memory Type:
DDR5 4800/4000/3600 RDIMM
Memory Size:
96GB, 64GB, 48GB, 32GB, 24GB, 16GB (RDIMM)
*Please refer to www.asus.com for latest momory AVL update

Expansion Slots

Total Slot : 3

2 x PCIe 5.0 x 16 slot (x16 link, FL)
1 x PCIe 5.0 x 8 slot (x8 link, FL)

Form Factor

CEB, 12" x 10.5"

Storage

M.2
1 x M.2 (PCIe Gen5x4, support 22110) (SATA Mode support)
1 x M.2 (PCIe Gen5x4, support 2280) (SATA Mode support)

MCIO
4 x MCIO connector (PCIe Gen5x8), support 8 x NVMe drives
1 x MCIO connector (PCIe Gen5x8), support 8 x SATA drives or 2 x NVMe drives

Networking

2 x SFP28 25Gb/s (Broadcom BCM57414B1KFSBG) + 1 x Mgmt LAN

On Board I/O

1 x USB 3.2 Gen1 header (2 port for front panel)
1 x USB 3.2 Gen1 port (1 port Type-A vertical)
1 x Serial port header
6 x FAN header (4-pin)
1 x TPM header
1 x Chassis Intruder header (2-pin)

Back I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
2 x SFP28 25Gb/s
1 x RJ-45 Management port

Management Solution

ASUS Control Center
ASMB11-iKVM module for KVM-over-Internet

Environment

Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

Accessories

Gift Box (1-in-1)
1 x I/O shield
1 x Com port cable
1 x Double M.2 screw
4 x Rubber

Bulk Pack (10-in-1)
1 x I/O shield
1 x Double M.2 screw
4 x Rubber
