P/N
PS-TPD-0750FNFAGE-4
watts
750W
Model
TPD-0750AH3FCG
Max. Output Capacity
750W
COLORE
Black
Dimension ( W / H / D )
150mm(W) x 86mm(H) x 160mm(D)
Weight
1.63 KG
PFC (Power Factor Correction)
Active PFC
Power Good Signal
100-150 msec
Hold Up Time
> 17msec at 100% of full load
Input Current
10.0A / 5.0A
Input Frequency Range
50/60Hz
Input Voltage
100V – 240V~
Operating Temperature
0°C to + 40°C
Operating Humidity
20% to 90%,non-condensing
Storage Temperature
-20°C to + 70°C
Storage Humidity
5% to 95%, non-condensing

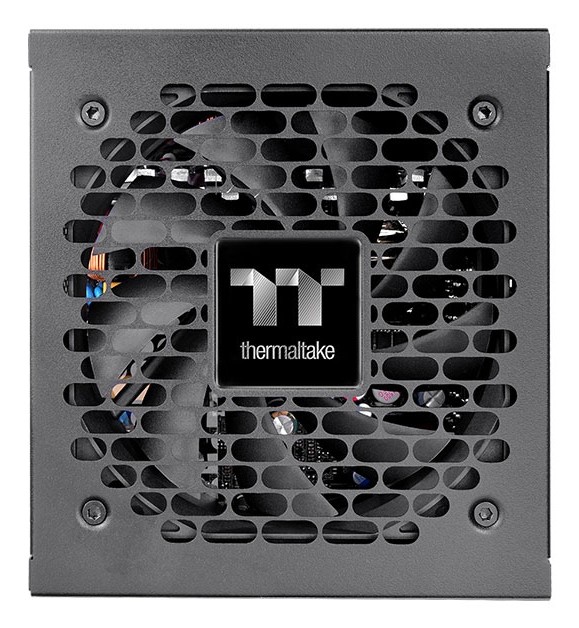

SISTEMA DI RAFFREDDAMENTO
13.5cm fluid bearing fan
Efficiency
Meet 80 PLUS®Gold at 115Vac input.
MTBF
100,000 hrs minimum
Safety Approval
CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC

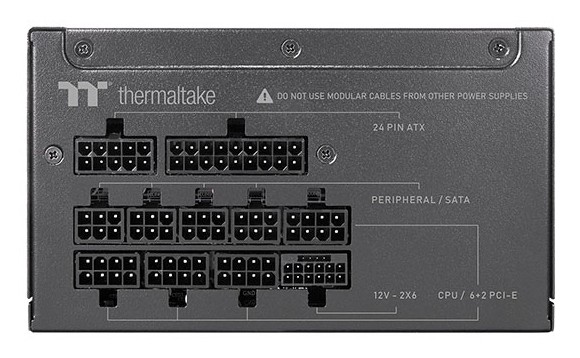

PCI-E 6+2pin
PCIe 6+2Pin X 4
PCIe 12+4Pin X 1
Protection
OCP, OVP, UVP, OPP, SCP, OTP
Recensioni Alimentatore Thermaltake TOUGHPOWER GT 750W Gold ATX3.1 PS-TPT-0750FNFAGE-3
