Computing System
ProcessorIntel Core i3-1315U (6-core 1.2GHz, up to 4.5GHz)
ChipsetIntel
System Memory2 x DDR5-5200/4800 SODIMM Slot (up to 64GB)
Graphics
Graphics EngineIntel UHD Graphics
Video OutputHDMI 2.0b (up to 3840x2160@60Hz)
DisplayPort 1.4 (up to 4096X2160@60Hz)
DisplayPort 1.4 via Thunderbolt (up to 4096X2160@60Hz)
Storage
Hard Drive2.5-inch SATA 6.0 Gbps SSD/HDD slot
StorageN/A
Optical DriveN/A
mSATAN/A
M.2M.2 NVMe PCIe 4.0 x4 SSD slot (2230/2242)
Card Reader3-in-1 (SD/SDHC/SDXC)
I/O Ports
AudioDigital 8 Channel Audio via HDMI
Stereo analog audio
Microphone
USB Port1 x USB 3.1 (Front)
3 x USB 3.1 (Rear)
1 x USB 2.0 (Rear)
LANDual LAN (2.5Gbps / Gigabit)
AntennaExternal
WifiWi-Fi 6
BluetoothBluetooth 5.2
Legacy I/ON/A
CIR Infrared PortN/A
Thunderbolt1 x Thunderbolt 4
IDEN/A
Mechanical
Kensington LockYes
LED IndicatorsPower, HDD, WiFi
Power SupplyUSB-C PD Power Supply
DC 20V/65W
Cooling systemPassive cooling
ZBOX Dimensions204mm x 129mm x 68mm (8.03in x 5.08in x 2.68in)
Case MountingVESA Mount
Miscellaneous
Supported OSWindows 11 ready
AccessoriesWiFi antenna
AC adapter
Power cord (bundled cable type dependent on region)
Warranty card
Quick Install Guide
VESA Mount (with 4 screws)
USB Flash Drive with OS drivers

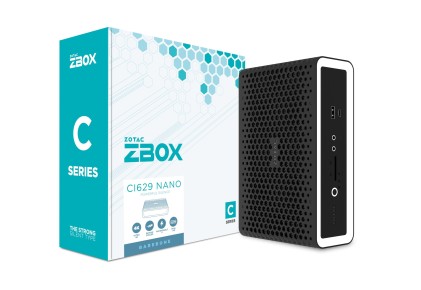

Recensioni ZOTAC ZBOX-CI629 Nano Mini-PC - Barebone
