Graphics Processing
Radeon™ RX 7600 XT
Core Clock
Boost Clock* : up to 2810 MHz (Reference card: 2755 MHz)
Game Clock* : up to 2539 MHz (Reference card: 2470 MHz)
Stream Processors
2048
Memory Clock
18 Gbps
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=281.4 W=116.6 H=52.6 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
600W
Power Connectors
8 Pin*2

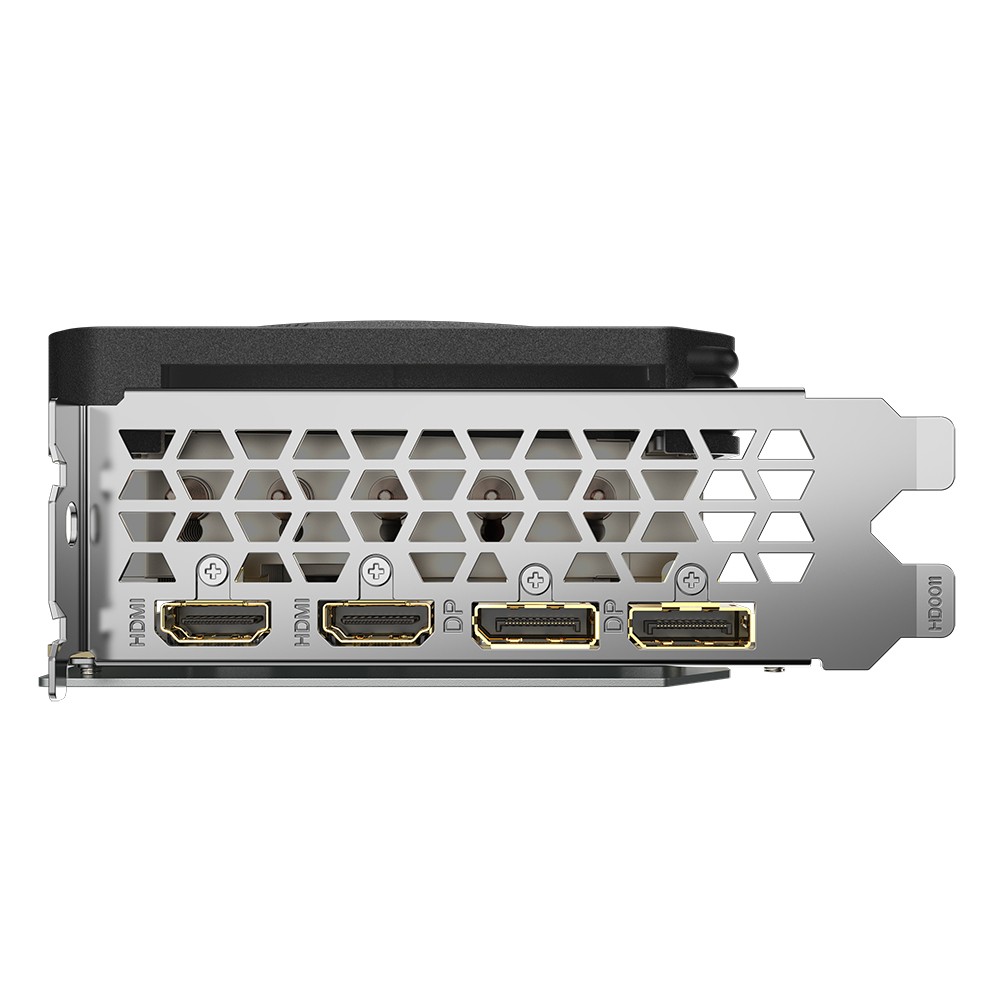

Output
DisplayPort 2.1 *2
HDMI 2.1a *2
Accessories
Quick guide
Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
