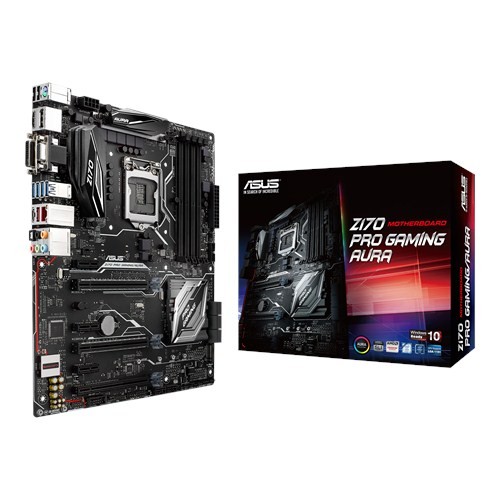

MB 1151 ASUS Z170 Pro Gaming/AURA

Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Intel® Z170

4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/DVI-D/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology

0 x PCIe 3.0/2.0 x1 (x16 or dual x16 or x16/x8/x16 or x16/x8/x8/x8)
0 x PCIe 3.0/2.0 x1 (x16 or dual x16 or x16/x8/x16 or x16/x8/x8/x8)
0 x PCIe 3.0/2.0 x1

AMD SB710 controller :
0 x SATA 3Gb/s port(s),
0 x SATA 3Gb/s port(s),
Support Raid 0, 1, 5, 10
Support Intel® Smart Response Technology on 2nd generation Intel® Core™ processor family
Support Intel® Smart Response Technology on 2nd generation Intel® Core™ processor family

Realtek®, 0 x 10/100 LAN Controller(s), featuring AI NET2
Anti-surge LANGuard

AD1988B 4-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II

Built-in Controller :
0 x USB port(s) (0 at back panel, red, )
Built-in Controller :
0 x USB port(s) (0 at back panel, , , Reversible)
Built-in Controller :
0 x USB port(s) (0 at back panel, blue, 0 at mid-board)
Built-in Controller :
0 x USB port(s) (0 at back panel, black, 0 at mid-board)

ASUS Dual Intelligent Processors 3 - SMART DIGI+ Power Control :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 3, and Turbo App
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS Hybrid Processor - TurboV EVO :
- Auto Tuning
- TurboV
- GPU Boost
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
Media Streamer
RAMCache

Windows® 10
Windows® 8.1
Windows® 7

0 x PS/2 keyboard/mouse combo port(s)
0 x DVI
0 x D-Sub
0 x DisplayPort
0 x HDMI
0 x LAN (RJ45) port(s)
0 x USB 3.1 ()
0 x USB 3.1
0 x USB 3.0
0 x USB 2.0
0 x Optical S/PDIF out
0 x Audio jack(s)

0 x USB 3.0 connector(s) support(s) additional 0 USB 3.0 port(s) (19-pin, moss green)
0 x USB 2.0 connector(s) support(s) additional 0 USB 2.0 port(s)
0 x M.2 Socket 3
0 x COM port(s) connector(s)
0 x SATA 6Gb/s connector(s)
0 x CPU Fan connector(s) (0 x 4 -pin)
0 x CPU OPT Fan connector(s) (0 x 4 -pin)
0 x Chassis Fan connector(s) (0 x 4 -pin)
0 x 24-pin EATX Power connector(s)
0 x 8-pin ATX 12V Power connector(s)
0 x Front panel audio connector(s) (AAFP)
0 x System panel(s)
0 x Thermal sensor connector(s)
0 x CPU OV
0 x Clear CMOS jumper(s)
0 x 5-pin EXT_FAN(Extension Fan) connector
0 x ROG extension (ROG_EXT) header(s)
0 x 14-1 pin TPM connector

User's manual
I/O Shield
0 x SATA 6Gb/s cable(s)
0 x M.2 Screw Package
0 x pack of cable tie
0 x CPU installation tool
0 x Supporting DVD
0 x SLI bridge(s)
1 x 0 in 1 Cable Label (s)
0 x 3D printing mount package

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

WfM 2.0, DMI 3.0, WOL by PME, PXE

Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

*1:When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
*2:These functions will work depending on the CPU installed.
