CPU Rockchip Quad-Core RK3288-CG.W processor
Memory 2GB Dual Channel DDR3
Graphic Integrated Graphics Processor
ARM® Mali™-T764 GPU*1
Storage Micro SD(TF) card slot
LAN RTL GB LAN
Wireless Data Network 802.11 b/g/n, Blutetooth V4.2 + EDR
Audio RTL ALC4030U CODEC
USB Ports 4 x USB 2.0
Internal I/O Ports 1 x 40-pin headers:
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 4 x UART
- up to 2 x PWM
- up to 1 x PCM/I2S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin contact pin:
- 1 x PWM
- 1 x S/PDIF
1 x 15-pin MIPI DSI
1 x 15-pin MIPI CSI
Accessories Passive heatsink*2
User manual
Form Factor 3.37 inch x 2.125 inch ( 8.55 cm x 5.4 cm )
Weight 55g
Environment Operation temperature: 0℃ ~ 60℃
Non operation temperature: -40℃ ~ 85℃
Non operation humidity: 0% ~ 85% (Non condensing)
OS Support Debian 10 / Android 11
Visti di recente

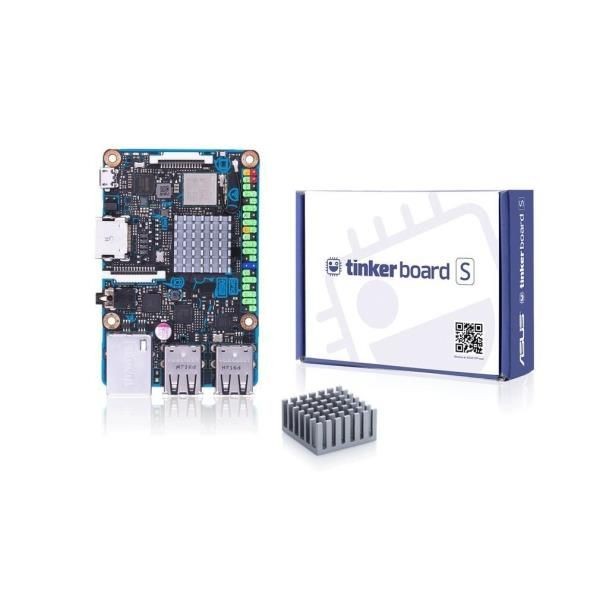

Recensioni ASUS TINKER BOARD S R2.0/A/2G/16G
