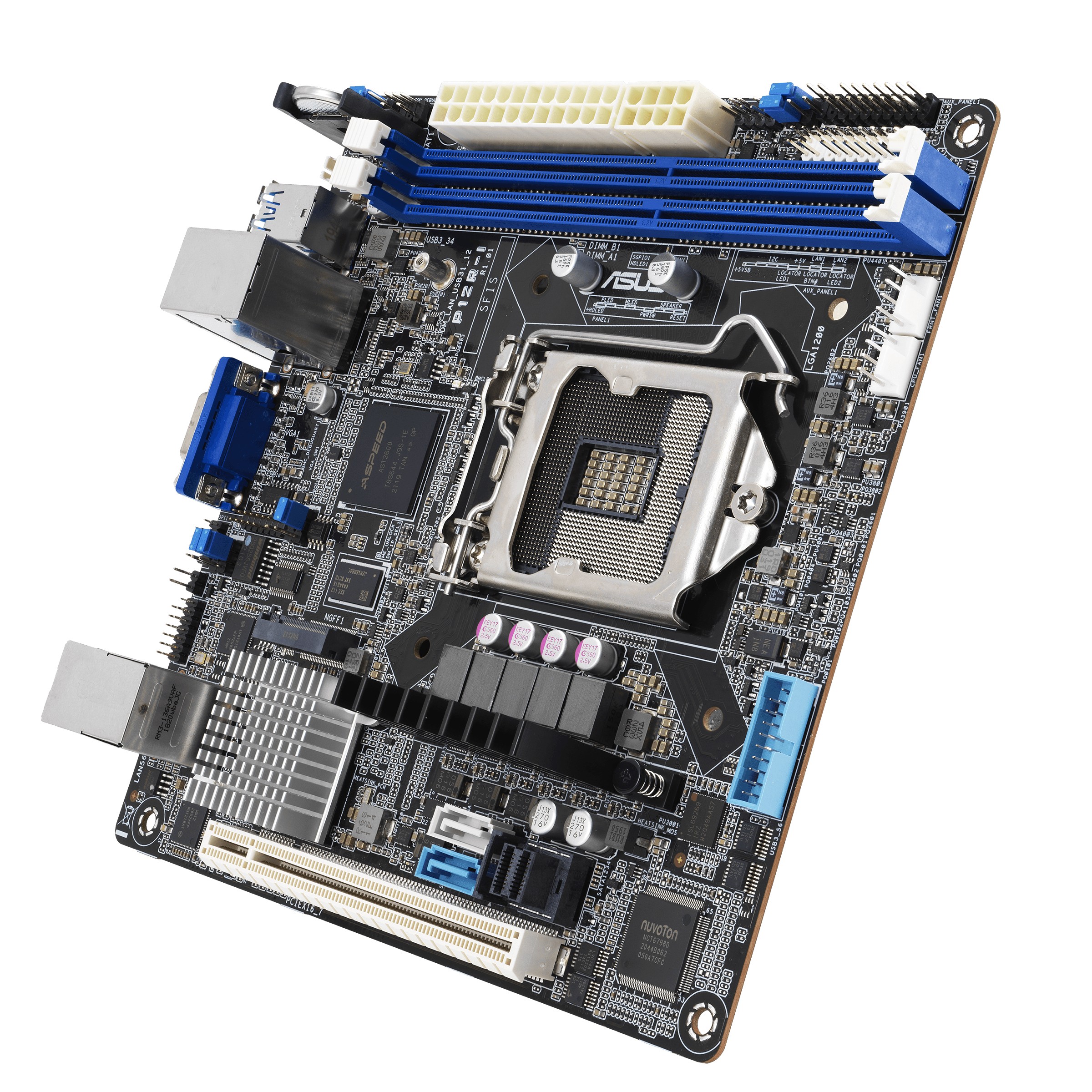

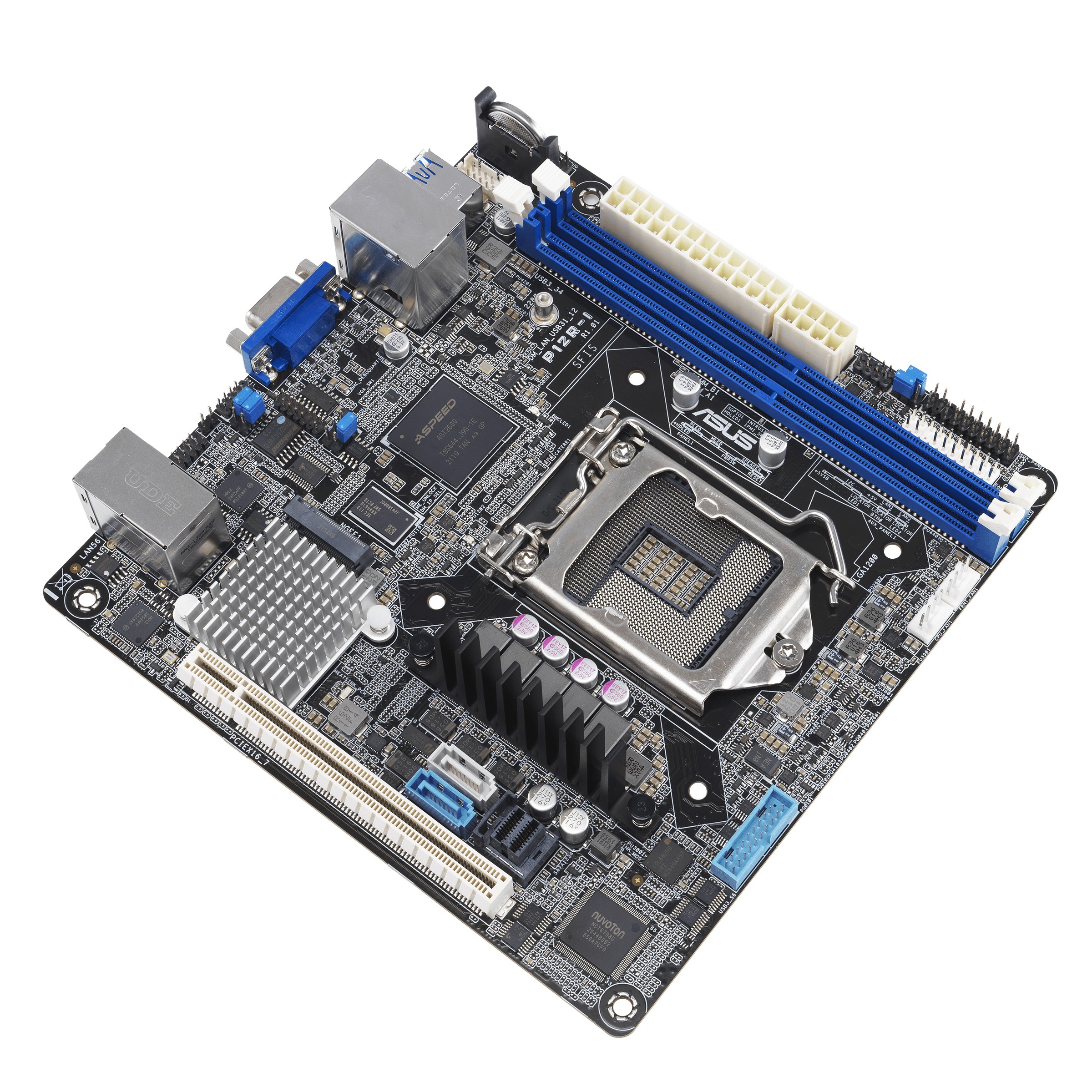

ASUS P12R-I /ASMB10 (1200) (D)

Codice: CE68695

Produttore: Asus

PN: 90SB0A70-M0UAY0

EAN: 4711081507604



291.84 €
Non disponibile



 Processor / System Bus


1 x Socket LGA1200
Intel® Pentium® Processors
Intel® Xeon® E processors
Core Logic

Intel® C252 Chipset
Memory

Total Slots :
2 (2 Channels)
Capacity :
Maximum up to 64GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB
* Refer to support page for more information
Expansion Slots

Total Slot : 1
Slot Location 7 : PCI-E x16
Form Factor

Mini ITX (6.7" x 6.7", 170mm x 170mm)
Storage

Storage Controller :
6 x SATA3 6Gb/s ports *1
1 x M.2 connector (2280/2260/2242) *2
*1 4 by 1 mini-SAS HD
*2 1 x M.2 connector (NGFF 2280, PCI-E Gen4 X 4 link or SATA signal, gray SATA port will disable when M.2 is SATA signal)

SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking

2 x Intel® I210AT + 1 x Mgmt LAN
Graphic

Aspeed AST2600 with 64MB VRAM
On Board I/O

1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
4 x USB3.2 Gen1 ports
1 x USB3.2 Gen1 header
2 x Fan Header , 4pin
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
Back I/O Ports

4 x USB 3.2 Gen 1
1 x VGA Port (VGA from BMC)
2 x GbE LAN + 1 x Mgmt LAN
Management Solution

ASUS Control Center Enterprise (Optional)
Optional ASMB10-iKVM for KVM-over-Internet
Weight

Gift Box (1-in-1)
Net Weight : 0.52 KG
Gross Weight : 1.1 KG

Bulk Pack (10-in-1)
Net Weight : 3.66 KG
Gross Weight : 5.8 KG
Environment

Operation temperature: 10℃ ~ 50℃*
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.

Accessories

Gift Box (1-in-1)
2 x Support CD
1 x I/O shield
6 x SATA 6G cables
4 x Plate for LGA1200
Bulk Pack (10-in-1)
2 x Support CD
1 x I/O shield
1 x Plate for LGA1200
Monitoring

CPU Temperature
Fan RPM
