Processor System
CPU I3-1115G4, DC, Max Speed up to 4.1GHz
Chipset MCP
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® UHD Graphics
HDMI HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2/WLAN 1 x Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)
Audio
Interface Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

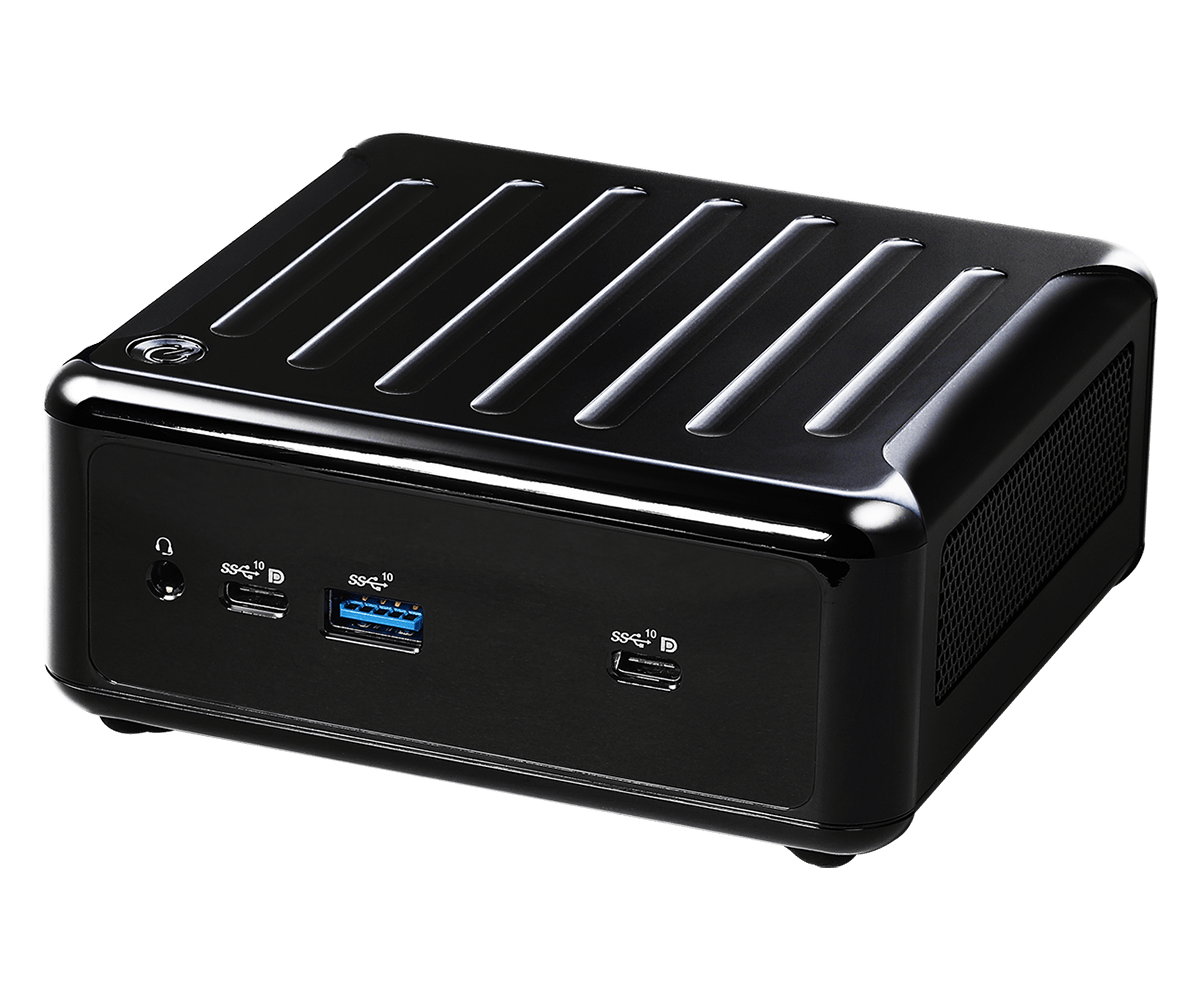

Front I/O
USB 1 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4 display output)
* USB4™ Compliance Test is pending for certification
* For Thunderbolt support, please refer to support list.
Audio 1 (headphone & microphone jack)
Rear I/O
HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.4
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
DC Jack 1
Storage
M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR 19V/90W Power Adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
Mechanical
Construction Plastic
Mounting VESA mounting
Dimensions (W x H x D) 110.0 x 117.5 x 47.85mm
Weight Net Weight:1.0Kg
Others
OS Support Windows 10
Certifications CE, FCC Class A
Packing List 1 x 19V/90W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Longivity Support No
TPM TPM 2.0 onboard IC
